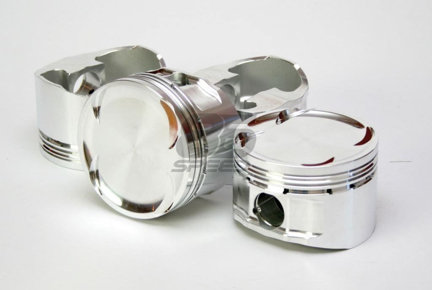

    CP Carrillo FA20 9:1 Forged Piston Set (4pc)

    SKU: CPP-SC7402
    Manufacturer: Carrillo

    $885.15
    $749.00
    i h

    *Fast Shipping *Buy Now and Pay Later

    *Authorized Dealer *Safe Purchases

    *Outstanding Customer Service A+++

    CP Pistons is one of the most trusted names in the industry, and for good reason. Their extensive shelf catalog provides the user with many of the options that you'd normally be resigned to going to a custom piston for.  Their standard offering already includes Dual Pin Oilers - providing double the amount of oil to the wrist pin, radiused valve reliefs  and the pin fitting final hone on the wrist pin bore.  They even include an Accumulator Groove as a standard option. This provides a small pocket for the combustion gasses to collect after the first ring, reducing ring flutter and providing a better seal allowing more downward force on the piston A.K.A. - make more power.

    • COMPRESSION RATIO; 9.0:1
    • DOME CC: -18.3 cc
    • ENGINE SPECIFICATIONS: FA20 / 4U-GSE 2.0L
    • PART WEIGHT: 320 g
    • PIN SIZE: 22mm
    • COMPRESSION HEIGHT: 1.292"
    • ROD LENGTH: 129.3mm
    • STROKE: 86mm
    • BORE: 86mm
    • MATERIAL: 2618 Alloy
    • BORE SIZE: STD
    0.0 0
    Write your own review Close
    • Product can be reviewed only after purchasing it
    • Only registered users can write reviews
    *
    *
    • Bad
    • Excellent
    *
    *
    *
    *

    CP Pistons is one of the most trusted names in the industry, and for good reason. Their extensive shelf catalog provides the user with many of the options that you'd normally be resigned to going to a custom piston for.  Their standard offering already includes Dual Pin Oilers - providing double the amount of oil to the wrist pin, radiused valve reliefs  and the pin fitting final hone on the wrist pin bore.  They even include an Accumulator Groove as a standard option. This provides a small pocket for the combustion gasses to collect after the first ring, reducing ring flutter and providing a better seal allowing more downward force on the piston A.K.A. - make more power.

    • COMPRESSION RATIO; 9.0:1
    • DOME CC: -18.3 cc
    • ENGINE SPECIFICATIONS: FA20 / 4U-GSE 2.0L
    • PART WEIGHT: 320 g
    • PIN SIZE: 22mm
    • COMPRESSION HEIGHT: 1.292"
    • ROD LENGTH: 129.3mm
    • STROKE: 86mm
    • BORE: 86mm
    • MATERIAL: 2618 Alloy
    • BORE SIZE: STD
