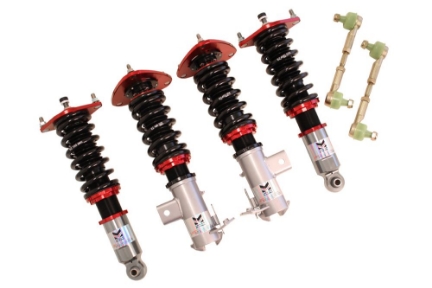

    Megan Racing Street Series Coilovers - 2013-2020 BRZ/FR-S/86

    SKU: MR-CDK-SFR12
    Manufacturer: Megan Racing
    Fits 2013-2020 Subaru BRZ, Scion FR-S, and Toyota 86

    $1,099.00
    $899.00
    i h

    *Fast Shipping *Buy Now and Pay Later

    *Authorized Dealer *Safe Purchases

    *Outstanding Customer Service A+++

    Megan Racing Coil-Over Dampers are the ultimate upgrade to your track or street car. Featuring 32 levels of damper force adjustment, separate spring perch height and shock length adjustment allowing you to retain full suspension stroke and to fine tune your suspension characteristics. These damper kits are then perfectly matched with front and rear Pillow Ball upper mounts, including camber plates integrated with the upper Pillow Ball mounts on strut-type suspension applications.


    Compression and rebound settings are easily adjusted through a single damper adjustment knob which is built-in at the top of the damper mount for easy access. Adjustments are simple to tune according to your style of driving and desired comfort level whether you are a professional certified mechanic or an automotive enthusiast with amateur mechanical skills. All of our dampers are capable of handling a +2kg/mm or -2kg/mm change in spring rates to further tune your suspension to your desired handling characteristics.

    Height adjustments are made with separate CNC-Machined locking spring perches for accuracy and smooth adjustment with separate damper shock length adjustment to retain full-stroke and allows for precision suspension tuning. The wide range of allowable ride-height adjustment allows for a conservative drop to more aggressive ride heights for an aggressive stance, or to fine tune your suspension for the circuit to gain full potential of your vehicle's handling capabilities.

    On applications utilizing strut-type suspension designs, the Megan Racing Damper Kits come with fully adjustable Pillow-Ball upper mount camber plates to easily tune and adjust your camber, giving you a competitive edge over other suspension setups. This allows you to tune your car for any ride height and still adjust camber to improve handling, vehicle predictability and tire wear, which is a great benefit both on the race-track and on the street.

    The quality and durability of the Megan Racing Damper kits are unmatched. Made of extremely durable Steel and featuring springs that are constructed of SAE-9254 Cold-Wound Steel which are then tested over 500,000 times by compression inspection. With deformation less than 5% and high strength sophisticated surface coating, we stand by our product with our strong warranty.


    SPRING RATES:
    F: 62mm ID; 150mm length; 8 kg/mm
    R: 62mm ID; 180mm length; 8 kg/mm

    DAMPER SPECS:
    F: 110mm stroke; 220mm length
    R: 95mm stroke; 180mm length

    - 32 Levels of Damper Force Adjustment

    - Pillow Ball Upper Mounts

    - Rubber Dust Boots

    - Adjustable Ride Height

    - Aggressive Spring Rates

    - Single-Cylinder Design

    - Aluminum Brackets

    32 Levels of Adjustment:

    1-8: Suggested for track use.
    9-16: Suggested for mountain/aggressive use.
    17-32: Suggested for common street use.

    - All coil-over damper kits come with 1-year manufacturer-defect warranty.

    - All Hardware is Included


    SPECS:


    ITEM NOTES:
    Street Coilovers; 32 Way Adjustable


    VEHICLE NOTES:


    APPLICATIONS:

    2013-2020 BRZ/FR-S/86

    5.0 2
    Write your own review Close
    • Product can be reviewed only after purchasing it
    • Only registered users can write reviews
    *
    *
    • Bad
    • Excellent
    Wilber | 9/4/2015 5:00 PM
    Great product
    Great suspension upgrade. Had mine for a few weeks now and i am loving it. As a daily driver, it fits my needs and the few time i tested it going sideways it has held up very well. I would recommend this coilover.
    Was this review helpful? Yes No (2/0)
    Terrence | 6/17/2019 10:15 PM
    Best coilovers for the price
    For those unwilling to spend the big bucks on coilovers these are the best price to quality out there. I've run a few different brands and am always satisfied with the quality of Megan.
    Was this review helpful? Yes No (1/0)
    *
    *
    *
    *

    Megan Racing Coil-Over Dampers are the ultimate upgrade to your track or street car. Featuring 32 levels of damper force adjustment, separate spring perch height and shock length adjustment allowing you to retain full suspension stroke and to fine tune your suspension characteristics. These damper kits are then perfectly matched with front and rear Pillow Ball upper mounts, including camber plates integrated with the upper Pillow Ball mounts on strut-type suspension applications.


    Compression and rebound settings are easily adjusted through a single damper adjustment knob which is built-in at the top of the damper mount for easy access. Adjustments are simple to tune according to your style of driving and desired comfort level whether you are a professional certified mechanic or an automotive enthusiast with amateur mechanical skills. All of our dampers are capable of handling a +2kg/mm or -2kg/mm change in spring rates to further tune your suspension to your desired handling characteristics.

    Height adjustments are made with separate CNC-Machined locking spring perches for accuracy and smooth adjustment with separate damper shock length adjustment to retain full-stroke and allows for precision suspension tuning. The wide range of allowable ride-height adjustment allows for a conservative drop to more aggressive ride heights for an aggressive stance, or to fine tune your suspension for the circuit to gain full potential of your vehicle's handling capabilities.

    On applications utilizing strut-type suspension designs, the Megan Racing Damper Kits come with fully adjustable Pillow-Ball upper mount camber plates to easily tune and adjust your camber, giving you a competitive edge over other suspension setups. This allows you to tune your car for any ride height and still adjust camber to improve handling, vehicle predictability and tire wear, which is a great benefit both on the race-track and on the street.

    The quality and durability of the Megan Racing Damper kits are unmatched. Made of extremely durable Steel and featuring springs that are constructed of SAE-9254 Cold-Wound Steel which are then tested over 500,000 times by compression inspection. With deformation less than 5% and high strength sophisticated surface coating, we stand by our product with our strong warranty.


    SPRING RATES:
    F: 62mm ID; 150mm length; 8 kg/mm
    R: 62mm ID; 180mm length; 8 kg/mm

    DAMPER SPECS:
    F: 110mm stroke; 220mm length
    R: 95mm stroke; 180mm length

    - 32 Levels of Damper Force Adjustment

    - Pillow Ball Upper Mounts

    - Rubber Dust Boots

    - Adjustable Ride Height

    - Aggressive Spring Rates

    - Single-Cylinder Design

    - Aluminum Brackets

    32 Levels of Adjustment:

    1-8: Suggested for track use.
    9-16: Suggested for mountain/aggressive use.
    17-32: Suggested for common street use.

    - All coil-over damper kits come with 1-year manufacturer-defect warranty.

    - All Hardware is Included


    SPECS:


    ITEM NOTES:
    Street Coilovers; 32 Way Adjustable


    VEHICLE NOTES:


    APPLICATIONS:

    2013-2020 BRZ/FR-S/86
